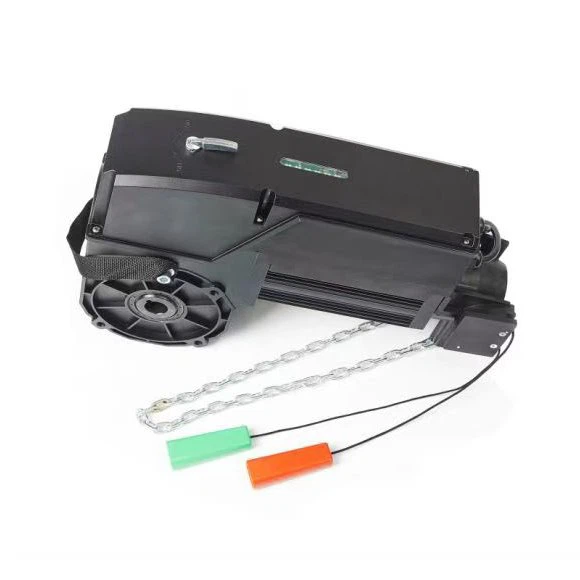

Specification
|
Yam khoom No. |
Tso zis torque |
Ntsuas ceev |
Tus naj npawb siab kawg ntawm cov zis ncej revolutions |
Qhov hnyav tshaj plaws ntawm lub qhov rooj nplooj. |
Qhov hluav taws xob |
Hwj chim |
Gearbox Ratio |
Chav kawm tiv thaiv |
Lub sijhawm siab tshaj plaws ntawm kev ua haujlwm tas mus li |
|
IN-I |
35N.m |
31 rpm |
17 lub kiv puag ncig |
180 KG |
AC110V-AC220V/50Hz-60Hz |
750W |
48:1 |
IP65 |
10 feeb |
|
IN- II |
50N.m |
24 rpm |
17 lub kiv puag ncig |
260 KG |
AC110V-AC220V/50Hz-60Hz |
670W |
58:1 |
IP65 |
10 feeb |
|
IB-III |
50N.m |
24 rpm |
17 lub kiv puag ncig |
260 KG |
AC110V-AC220V/50Hz-60Hz |
610W |
58:1 |
IP65 |
15 feeb |
|
IB-IV |
100N.m |
24 rpm |
17 lub kiv puag ncig |
500 KG |
AC380V / 50Hz |
1000W |
58:1 |
IP65 |
15 feeb |
|
IN-V |
130N.m |
18 rpm |
17 lub kiv puag ncig |
650 KG |
AC380V / 50Hz |
1000W |
80:1 |
IP65 |
15 feeb |
Installation Indication
Txhawm rau nruab tus tsav ntawm lub qhov rooj, ua cov hauv qab no:
- Xauv lub tsav.
- Mounting bracket 2 tuaj yeem ntsia tau rau sab laug lossis sab xis ntawm tus tsav.
- Txuas nrog cov ntsia hlau 1 raws li kev xaiv ua haujlwm, nrog rau mounting washer bracket 2 rau tsav 5, tsis tas yuav zawm cov ntsia hlau.
- Txuas lub mounting bracket rau lub hauv paus, txuas lub tsav 5 mus rau 3 lub qhov rooj shafts (phab ntsa los yog hlau qauv), thiab koj txiav txim siab rau nruab tus tsav los cim qhov chaw ntawm lub mounting bracket fastening qhov.
- Tshem cov tsav los ntawm lub qhov rooj qag thiab ua qhov tsim nyog installation ua haujlwm kom ruaj ntseg mounting bracket rau hauv paus.
- Nruab ib lub nplhaib nres 4 ntawm ncej 3.
- Ntxig tsav tsheb 5 rau ntawm ncej 3 Nruab qhov yuav tsum tau tiaj tus yuam sij 6 ntawm ncej 3.
- Fasten mounting bracket 2 rau hauv paus thiab zawm tag nrho cov ntsia hlau 1
- Nruab lwm lub nplhaib xauv 4 ntawm lub qhov rooj ncej 3. Ob lub nplhaib xauv 4 yog nruj nreem ntsia ntawm ob sab ntawm tus tsav thiab ruaj nrog cov ntsia hlau.
Cov txiaj ntsig
Ntau hom muaj nyob rau kom haum rau qhov sib txawv voltages.
Muaj qhov sib txawv ntawm qhov hnyav tshaj plaws uas tuaj yeem nqa tau.
Kev tiv thaiv qib siab, tiv taus kev puas tsuaj, thiab tuaj yeem hloov kho rau ntau theem siab.
Tus tshiab zoo li stunning thiab atmospheric tshaj qhov qub.
Yuav Ua Li Cas Nruab Ib Qhov Rooj Qhib Qhov Rooj
Npaj txhij ua ntej installation
Kev tshuaj xyuas ntawm qhov chaw:
Tshawb xyuas qhov chaw ntawm lub qhov rooj qhib kev lag luam hauv kev nthuav dav ua ntej. Xyuas kom tseeb tias qhov chaw teeb tsa hauv av yog qib, ruaj khov, thiab tuaj yeem txhawb nqa qhov hnyav ntawm lub qhov rooj thiab lub qhov rooj qhib. Thaum ua haujlwm, lub qhov rooj ntawm lub qhov rooj loj loj ntawm cov qhov rooj zawv zawg lossis qhov rooj zawv zawg sib npaug yuav ua rau muaj zog ntau. Lub qhov rooj lub cev tuaj yeem ua haujlwm tsis sib xws thiab muaj peev xwm ua rau lub qhov rooj qhib lub neej luv yog tias hauv av tsis txaus los yog khov kho. Ib txhij, nrhiav txhua qhov chaw ntawm kev cuam tshuam hauv ib puag ncig, xws li cov chaw teeb liab siab lossis cov chaw sib nqus muaj zog, uas yuav cuam tshuam rau lub qhov rooj qhib lub sensor lub peev xwm ua haujlwm ib txwm. Piv txwv li, kev tiv thaiv kev tiv thaiv yuav tsim nyog los tiv thaiv kev cuam tshuam yog tias muaj cov xov tooj cua xa xov tooj cua lossis cov khoom siv lub cev muaj zog loj nyob ze.
Qhov rooj kuaj lub cev:
Kev kuaj xyuas tag nrho ntawm lub qhov rooj yuav tsum tau ua ua ntej txhim kho lub qhov rooj qhib. Xyuas kom tseeb tias lub qhov rooj lub cev tsim yog suab thiab tsis muaj cov khoom puas lossis deformed. Rau kab rov tav viav vias qhov rooj, xyuas kom cov hinges hloov tau thiab lub qhov rooj qhib thiab kaw zoo. Rau dov lub qhov rooj, xyuas kom cov menyuam tuaj yeem tig tau yooj yim thiab cov ntaub thaiv npog tau ruaj khov. Txhawm rau tiv thaiv kev ua haujlwm tsis zoo thaum lub qhov rooj qhib, txhua yam teeb meem ntawm lub qhov rooj yuav tsum tau kho lossis kho ua ntej. Tsis tas li ntawd, qhov zoo thiab qhov hnyav ntawm lub qhov rooj lub cev yuav tsum tau muab rau hauv kev txiav txim siab thaum xaiv tus qauv qhib lub qhov rooj. Piv txwv li, tus qauv qhib lub qhov rooj nrog lub qhov tso zis ntau dua yog xav tau rau lub qhov rooj zawv zawg hnyav dua.
Npaj cov cuab yeej thiab cov khoom tsim nyog rau kev teeb tsa:
Npaj cov cuab yeej tsim nyog thiab cov ntaub ntawv tsim nyog rau kev teeb tsa, suav nrog cov cuab yeej hluav taws xob, cov ntsia hlau ntsia hlau, cov ciaj ntswj, cov ntsia hlau nthuav dav, cov kab hluav taws xob, cov xov hlau tswj, thiab lwm yam. Cov khoom siv thiab cov ntaub ntawv xav tau rau ntau hom qhib qhov rooj yuav txawv, yog li nws yog qhov zoo tshaj los npaj lawv raws li lub qhov rooj qhib cov lus qhia installation. Txhawm rau lav tias txoj haujlwm kev teeb tsa ua haujlwm tau zoo, xyuas kom cov cuab yeej tsis raug puas tsuaj thiab cov ntaub ntawv zoo txaus siab rau cov qauv tsim nyog.
Cov kauj ruam rau kev teeb tsa
Nruab raws li hom qhib qhov rooj. Txhawm rau lav tias tus slider yuav glide smoothly ntawm tus swb rail, lub qhov rooj qhib qhov rooj swb yuav tsum tau muab tso rau hauv qhov pre-set slide rail system. Ib theem 'meter' yog yuav tsum tau, piv txwv li, thaum txhim kho ib tug swb rail qhov rooj opener rau ib tug loj zawv zawg qhov rooj nyob rau hauv thiaj li yuav lav tau tias tus swb rail yog theem thiab qhov yuam kev yog khaws cia nyob rau hauv qhov kev tso cai ntau yam. Hinged door openers yuav tsum tau muab khi kom ruaj khov rau lub qhov rooj pob khawm thiab ntsia raws li cov lus qhia raug. Precise excavation thiab installation nyob rau hauv lub qhov rooj pob khawm yog tsim nyog rau faus qhov rooj qhib. Nws yog ib qho tseem ceeb uas yuav tsum tau saib xyuas kom tsis txhob ua mob rau lub qhov rooj lossis ib puag ncig. Ob leeg kab rov tav thiab ntsug yuav tsum tau lav nyob rau hauv cov txheej txheem installation. Ib txoj hauj lwm phab ntsa tsim nyog yuav tsum tau xaiv thaum lub qhov rooj qhib qhov rooj qhib rau ntawm phab ntsa. Phab ntsa yuav tsum muaj zog txaus los txhawb lub qhov rooj qhib qhov hnyav thiab qhov hnyav nws tsim thaum ua haujlwm. Txhawm rau tiv thaiv lub qhov rooj qhib rau ntawm phab ntsa, siv cov bolts nthuav dav. Lub bolts 'qhov tob thiab qhov sib txawv yuav tsum ua raws li cov txheej txheem installation.
Yog tias lub qhov rooj qhib siv cov saw hlau, siv lub tshuab tsav, lossis lub iav tsav, cov khoom yuav tsum tau nruab kom zoo. Chain tsav yuav tsum tau muab tso rau ntawm cov saw ntawm lub sprocket thiab kev hloov ntawm cov saw nruj. Thaum cov saw hlau uas nruj dhau yuav ua rau kom hnav ntawm cov khoom sib kis, cov saw hlau uas xoob dhau tuaj yeem derail. Piv txwv li, qhov nruab nrab ntawm qhov deb ntawm lub sprocket tuaj yeem hloov kho kom muaj cov saw dav dav nruj hauv ib qho tshwj xeeb. Xyuas kom tseeb tias txoj siv yog nyob rau ntawm lub pulley thiab tias txoj siv tawv nruj yog haum rau txoj siv tawv. Xyuas kom cov iav mesh precisely nrog ib leeg nyob rau hauv ib tug iav tsav kom tsis txhob loj dhau los yog me me qhov chaw ntawm cov hniav.
Txhawm rau tiv thaiv kom tsis txhob ya raws lossis kub dhau, lub thawv tswj yuav tsum muab tso rau hauv qhov chaw qhuav, qhov cua zoo. Rau kev yooj yim ntawm kev xaim, lub thawv tswj feem ntau yuav tsum tau muab tso rau ib sab ntawm lub qhov rooj qhib lub ntsiab lub cev. Ua qhov nyob rau hauv phab ntsa thiab siv expansion bolts kom ruaj lub thawv tswj. Txhawm rau kom paub tseeb tias cov khoom siv hluav taws xob hauv lub thawv tswj tau ua haujlwm kom raug, xyuam xim rau lub thawv kab rov tav thaum lub sijhawm teeb tsa. Txhawm rau lav qhov kev ruaj ntseg ntawm ob tus neeg thiab cov khoom siv, lub thawv tswj cov xaim hauv av yuav tsum tsis tu ncua.
Nyob ntawm seb hom thiab qhov ntsuas ntawm lub sensor, xaiv qhov chaw tsim nyog. Qhov siab thiab lub kaum sab xis ntawm infrared sensors yuav tsum tau hloov kho raws li hom lub qhov rooj thiab lub hom phiaj siv. Feem ntau, lawv yog mounted ntawm ib sab los yog saum lub qhov rooj lub cev. Piv txwv li, infrared sensor qhov siab tuaj yeem hloov kho kom nyob nruab nrab ntawm ib thiab ib thiab ib nrab meters saum toj no hauv av, thiab nws lub kaum sab xis yuav tsum tuaj yeem npog thaj tsam uas tib neeg feem ntau dhau los ntawm lub qhov rooj viav vias. Txhawm rau tiv thaiv kev cuam tshuam nws lub peev xwm hnov qab, lub microwave sensor yuav tsum tau muab ntsia kom deb ntawm cov khoom thaiv thiab cov khoom hlau. Nws yog ib qho tsim nyog yuav tsum tso lub geomagnetic sensor nyob hauv av. Thaum installation, nco ntsoov faus nws siv cov txheej txheem pom zoo thiab qhov tob.
Kev xaim raws li lub qhov rooj qhib qhov hluav taws xob thaiv daim duab. Txhawm rau tiv thaiv kev thim rov qab ntawm lub cev muaj zog vim yog qhov tsis tsim nyog theem ib ntus, ua ntej txuas lub hwj chim cable mus rau qhov tsim nyog terminals ntawm lub thawv tswj thiab lub qhov rooj qhib. Ua tib zoo saib xyuas cov khoom siv hluav taws xob theem ib ntus.Siv lub ntsuas theem theem kom pom cov khoom siv hluav taws xob peb theem. Tom qab ntawd, raws li cov cim cim, txuas cov kab hluav taws xob tswj thiab cov kab tswj ntawm lub sensor, tswj lub thawv, lub qhov rooj qhib, thiab lwm yam khoom siv. Xyuas kom cov xov hlau ruaj khov thoob plaws hauv cov txheej txheem los tiv thaiv kev sib txuas virtual. Txhawm rau tiv thaiv cov xau, koj tuaj yeem, piv txwv li, siv crimping pliers kom ruaj ntseg crimp cov hlau txuas thiab npog nws nrog insulating daim kab xev ib zaug xaim tiav.
